Textbook Study Note, Active Microwave Circuits

U. L. Rohde and D. P. Newkirt, RF/Microwave Circuit Design for Wireless Applications, Wiley, 2000



Chapter 1 Introduction to Wireless Circuit Design



1-1 Overview

Wireless circuits

Cellular telephone technology: handsets, base stations



1-2 System Functions

FM(frequency modulation)

PM(phase modulation)

SSB(single-sideband): high linearit, classs A amp

TDMA(time-division multiple access)



Mobile handset:

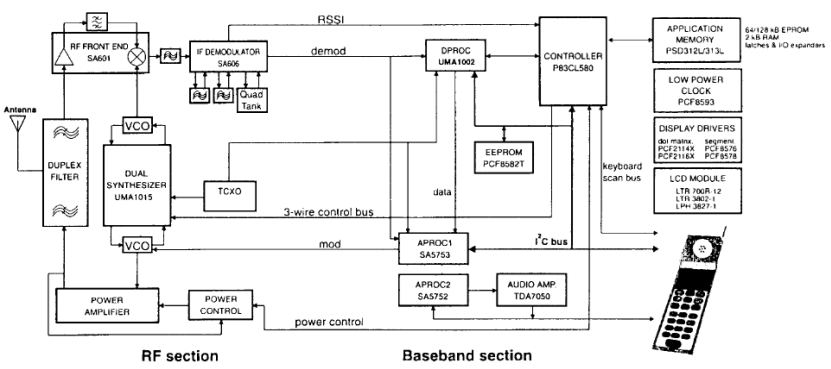

- Block diagram

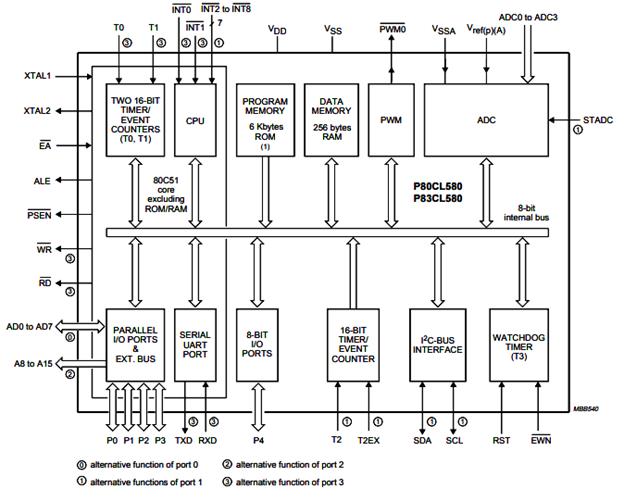

- P83CL580: 80C51 8-bit MCU

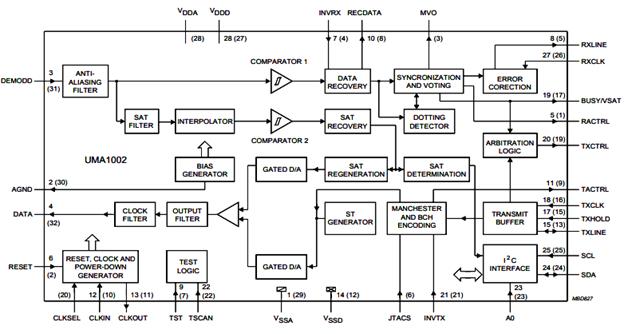

- UMA1002: baseband (data) processor

- SA606: cellular radio FM IF, RF > 500MHz, IF 44.545MHz

- SA601: LAN + mixer, 0.2-1.2GHz

- UMA1015: 0.4-1.1GHz synthesizer, dual output

- SA5753, SA5752: audio processor, microphone preamp + VOX + compressor + expandor

- TDA 7050: audio power amp

1) Receiver Chain

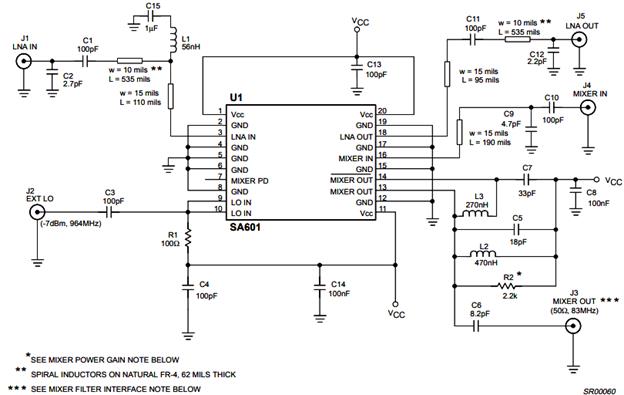

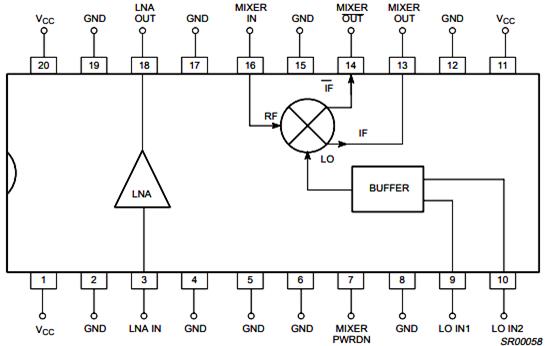

* RF front end SA601: 800-1200MHz, 1.6dB NF, 11.5dB gain, -2dBm IP3, 3V 7.4mA

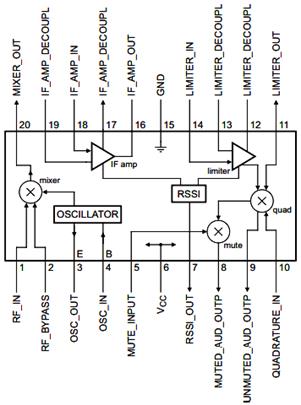

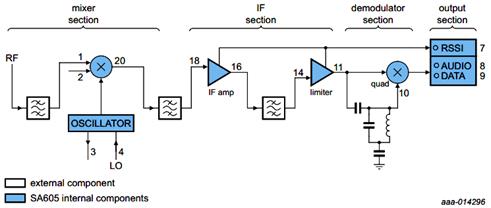

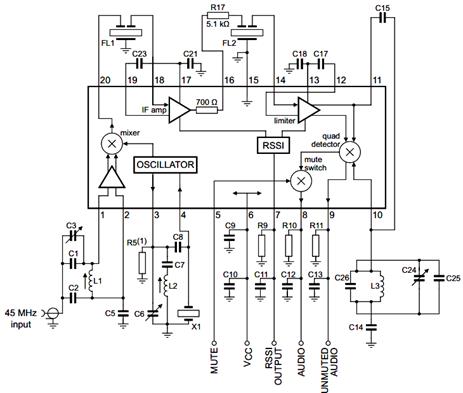

* IF Demodulator SA605



* Data Processor UMA1002



*

- Antenna

- Duplex filter

- RF front end: preamplifier + filter + mixer, cascode for preamp

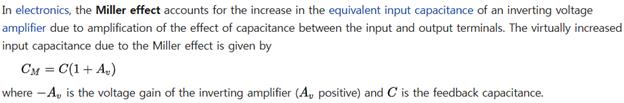

     * Cascode amp: CE+CB amp; high input-output isolation, high Zin and Zout, high bandwidth (due to the elimination of the Miller effect)





      * Class A amp





      * Duplexer

        Figure 9. Comparison of measured filter responses for PCS SAW duplexer.Advanced Crystal Technology ACTF8156 897.5MHz 897.5MHz SAW Filters for Mobile Radio / Walkie Talkie



      * SAW filter by Murata

           saw filter handset murata 이미지 검색결과
